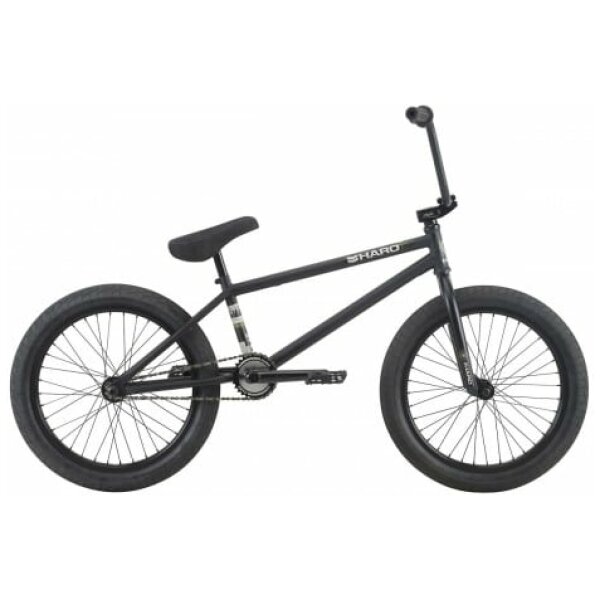

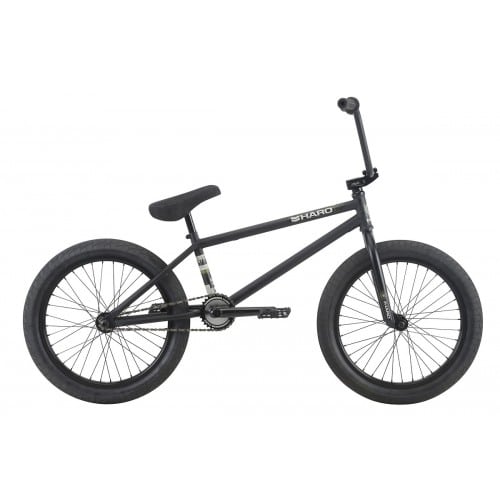

Haro SD AM 20″ 2018 – Matt Black
595.00€
FEATURES
100% chromoly frame with integrated head tube, tapered seat and chain stays, welded seat clamp, 21″ top
tube length and removable brake and cable mounts
100% chromoly fork with internal threaded 1 piece CNC steer tube, tapered legs and 5mm dropouts
100% chromoly bars 9″ with Haro Lineage CNC alloy top load stem
Haro branded 3-piece chromoly 8-spline 175mm cranks with Haro Team Disc 28T CNC alloy bolt drive
sprocket and sealed Mid BB
Fully sealed wheels with Haro Sata double-wall alloy rims, alloy shell hubs and RSD free-coaster rear hub
with 14mm male axle and 9t driver
Haro La Mesa tires 2.4″ front and rear
Demolition “Markit” padded Tri-pod seat with alloy Tri-pod post
Διαθέσιμο κατόπιν παραγγελίας
Περιγραφή
Περιγραφή
SPECIFICATIONS:
Frame Components
Frame 100% crmo frame w/ integrated head tube, tapered seat and chain stays, welded seat clamp and
removable brake and cable mounts
Fork 100% crmo fork w/ internal threaded 1-pc CNC steer tube, tapered legs and 5mm dropouts
Headset 1 1/8″ integrated threadless
Drivetrain
Cranks Haro 1978 3-pc crmo 8-spline 175mm, Haro Team Disc 28T CNC alloy
Bottom Bracket Sealed Mid
Gearing 28/9
Chain KMC Z410
Pedals Haro “1978” plastic
Wheels
Tires Haro La Mesa 20×2.40 F/R
Wheels/Rims Haro Sata 36H alloy double wall F/R
Hubs 3/8″ F / 14mm R straight axles, 36H alloy shell RSD free-coaster w/ 9T driver
Braking System
Brakes Haro 1978 Alloy 990
Brake Levers Tektro alloy
Other Components
Grips Haro Team Grips
Handle Bar 100% crmo 9″ rise
Stem Haro Lineage CNC alloy top load
Seat Markit Tri-pod
Seat Post Alloy Tri-pod 25.4mm
Seat Clamp Integrated welded to frame
GEOMETRY
Size Head Angle Seat Angle Top Tube Seat Tube Chainstay BB Height Stand Over
20.5 75° 71.5° 520mm (20.5″) 260mm (10.2″) 349mm (13.7″) 293mm (11.5″) 546mm (21.5″)
21 75° 71.5° 533mm (21″) 260mm (10.2″) 349mm (13.7″) 293mm (11.5″) 546mm (21.5″)
Επιπρόσθετες Πληροφορίες
Επιπρόσθετες Πληροφορίες
| Brand | HARO |
|---|
