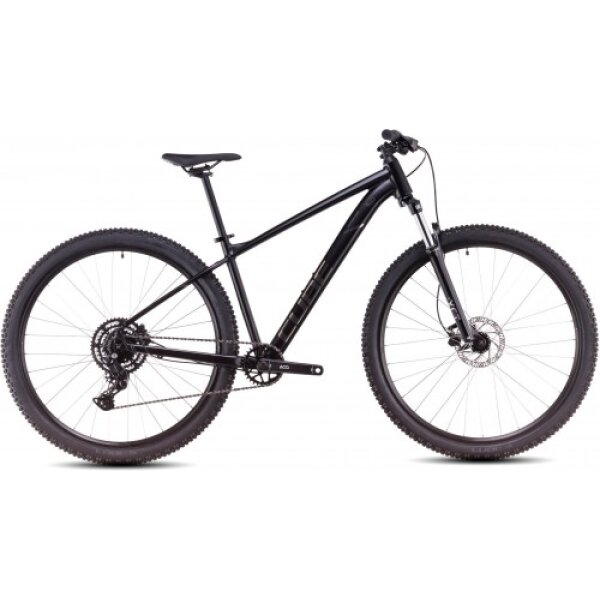

Cube Aim Pro black´n´slateblack – 2025

Cube Aim Pro black´n´slateblack – 2025

• frame Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount
• size Size Split: 27.5: XS, S // 29: M, L, XL, XXL
• Suspension fork SR Suntour XCT Disc, 100mm
• brake system Tektro HD-M275, Hydr, Disc Brake, PM/FM (160/160)
• rear derailleur Shimano Cues RD-U4000-GS, 9-Speed
• shifters Shimano Cues SL-U4010- Rapidfire-Plus
• bottom bracket Thun Paso-ML, 73mm BSA
• crankset Prowheel CC10Y-NW, 32T, 170mm
• cassette Shimano Cues CS-LG300, 11-46T
• chain KMC eGlide
• headset CUBE FPH868p, Tapered, Semi-Integrated
• Stem CUBE Performance Stem, 31.8mm
• handlebar CUBE Rise Trail Bar, 680mm
• grips ACID React
• rims CUBE EX25, 32H, Disc, Tubeless Ready
• front hub CUBE Alloy Light, QR, 6-Bolt
• rear hub CUBE Alloy Light, QR, 6-Bolt
• tyres CUBE MTB, 2.25
• saddle ACID Venec Lite
• seat post CUBE Performance Post, 27.2mm
• seat clamp CUBE Varioclose, 31.8mm
• pedals CUBE PP MTB
• colour fireorange´n´black
• weight 14,3 kg
• Structural Weight 140 kg

Geometry

Ergonomics

All values are given in millimetres or degrees.
